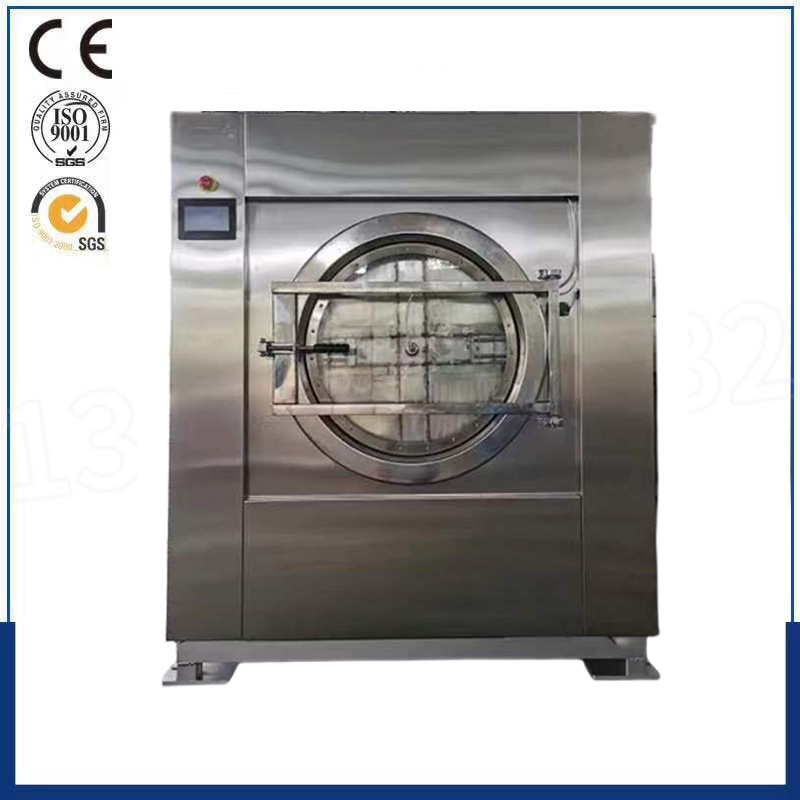

XTQ-100 乳膠洗脫烘一體機
-
XTQ-100 乳膠洗脫烘一體機
-
XTQ-130 乳膠洗脫烘一體機
一、乳膠洗脫烘一體機主要技術參數 Main Parameter for Washing Extracting Drying Machine
型號 | XTQ-100 | XTQ-130 | |
額定容量 rated capacity | |||
***小Min | kg | 70 | 90 |
***大Max | kg | 100 | 130 |
轉籠Drum | |||
直徑Diameter | mm | 1470 | 1470 |
徑深Diameter deepness | mm | 880 | 1160 |
外形尺寸Overall Dimension | |||
高Hight | mm | 2750 | 2750 |
長Length | mm | 1700 | 1700 |
寬Width | mm | 2050 | 2330 |
轉籠速度Drum speed | |||
洗滌轉速Washing rotate speed | r/min | 31 | 31 |
蒸汽壓力 Steam Pressure | Mpa | 0.4-0.6 | 0.4-0.6 |
泵 Pump | kw | 0.37 | 0.37 |
風機 Fan Motor | kw | 2.2 | 2.2 |
電機Motor | kw | 11 | 15 |
變頻器 Inverter | kw | 18 kw-3 kw | 22 kw-3 kw |
排水閥Draining valve | mm | DN100*2 | DN100*2 |
烘干蒸汽管 Dry Steam Pipe |
| DN40 | DN40 |
進水閥Water Inlet Valve | |||
排風管 Wind Exhaust Pipe |
| DN250 | DN250 |
進水管Cold water pipe |
| 3/2"" | 3/2" |
蒸汽管Steam pipe |
| 1" | 1" |
電源Power supply |
| Standard:380+N-3PH-50HZ | |
二、產品簡介
乳膠洗脫烘一體機全電腦液晶人機對話操作界面，中文顯示超大屏幕，有30種不同的洗滌程序可供選擇，可滿足任何洗滌、烘干要求， ***實現洗、漂、汰、烘等過程的自動化。 可安全放置在任何樓層，無需做地基。 該全自動洗脫烘一體機采用變頻系統，調速方便，啟動平穩噪音低，節能效果明顯，傳動結構簡單可靠。 該乳膠洗脫烘一體機全封閉后排水框架結構設計，減少污染，保持工作場地干燥清潔。內外筒均為304不銹鋼。提高了使用壽命。 不銹鋼精制門，氣動安全裝置，極大提高了使用中的安全性。后置濃油潤滑泵設計，實現傳動系統潤滑劑自動加油，先進，人性化的關懷。 本系列機型有蒸汽加熱、電加熱和天燃氣加熱形式可供選擇。 Product Introduction: The latex washing and drying integrated machine has a fully computerized LCD human-machine dialogue operation interface, a large Chinese display screen, and 30 different washing programs to choose from. It can meet any washing and drying requirements, fully realizing the automation of washing, bleaching, jigging, drying and other processes. It can be safely placed on any floor without the need for a foundation. The fully automatic washing and drying integrated machine adopts a frequency conversion system, which is easy to adjust speed, stable to start with low noise, obvious energy-saving effect, and simple and reliable transmission structure. The latex washing and drying integrated machine is designed with a fully enclosed drainage frame structure to reduce pollution and maintain a dry and clean workplace. Both the inner and outer cylinders are made of 304 stainless steel. Improved service life. The stainless steel refined door and pneumatic safety device greatly improve safety during use. The rear concentrated oil lubrication pump design achieves automatic lubrication of the transmission system lubricant, with advanced and humanized care. This series of models has options for steam heating, electric heating, and natural gas heating.
